Lab 2-part 3

-- Zhang Zihan t0936177 3.1 Image Encryption (ECB vs. CBC) ECB‐Encrypted Image (pic_ecb.bmp) Observation: The encrypted image retains a “blocky” outli

-- Zhang Zihan t0936177

3.1 Image Encryption (ECB vs. CBC)

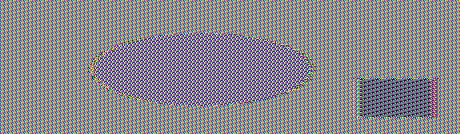

  • ECB‐Encrypted Image (pic_ecb.bmp)

    • Observation: The encrypted image retains a “blocky” outline of the original—regions of uniform color/pattern appear as repeated ciphertext blocks. Its quite dangerous.

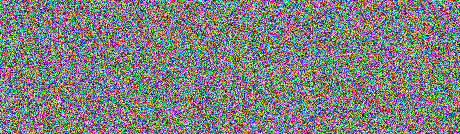

  • CBC‐Encrypted Image (pic_cbc.bmp)

    • Observation: Appears as random noise; no discernible shapes or repetition.

3.2

we set the 30byte of the raw text to be B then lets see whats going on

For the specified encrypted file, flip the least significant bit (XOR with 0x01) at the 30th byte position and write the result to a new file.

Type

content

Raw text

AAAAAAAAAAAAAAAAAAAAAAAAAAAAABAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

De-cbc

AAAAAAAAAAAAAAAA�y

����)`E�J��cAAAAAAAAAAAAA@AAAAAAAAAAAAAAAAAA

De-cfb

AAAAAAAAAAAAAAAAAAAAAAAAAAAAACAA���h�q�p�۸?�rcAAAAAAAAAAAAAAAA

De-ecb

AAAAAAAAAAAAAAAAD_��~�q�ؼ/ ���AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

De-ofb

AAAAAAAAAAAAAAAAAAAAAAAAAAAAACAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

  • CBC: The block with the flipped bit is lost entirely; the next block has exactly one bit flipped at the same position; all subsequent blocks are intact.

  • CFB: Only the corrupted bit in its block is wrong; the following block is entirely garbled; all other blocks decrypt correctly.

  • ECB: All blocks decrypt correctly except the single 16-byte block containing the flipped bit, which is completely garbled.

  • OFB: Only the single flipped bit in the plaintext is wrong; every other byte recovers perfectly.

2. Why these differences?

  • ECB treats each block independently → a ciphertext error affects only its own block.

  • CBC decryption of block i uses ciphertext i and ciphertext {i–1} → corruption in ciphertext i garbles block i and, via XOR, flips one bit in block {i+1}.

  • CFB feeds each ciphertext block back into the keystream generator → a flipped bit in ciphertext i flips that bit in plaintext i, and poisons the keystream so block _{i+1} decrypts incorrectly.

  • OFB generates its keystream solely from the IV and key (never from ciphertext) → a ciphertext error only flips the corresponding plaintext bit, with no further spread.

3. Implications

OFB is most robust—single‐bit errors stay minimal; ECB is next (limited to one block); CBC and CFB propagate errors to adjacent blocks, making them unsuitable for noisy channels without extra error‐correction.

Mode selection: For applications over unreliable links (e.g. wireless), prefer OFB/CFB or add forward‐error correction. For bulk data encryption where tamper detection is critical, always layer on authentication (e.g. AES-GCM) to detect and reject corrupted ciphertext.
